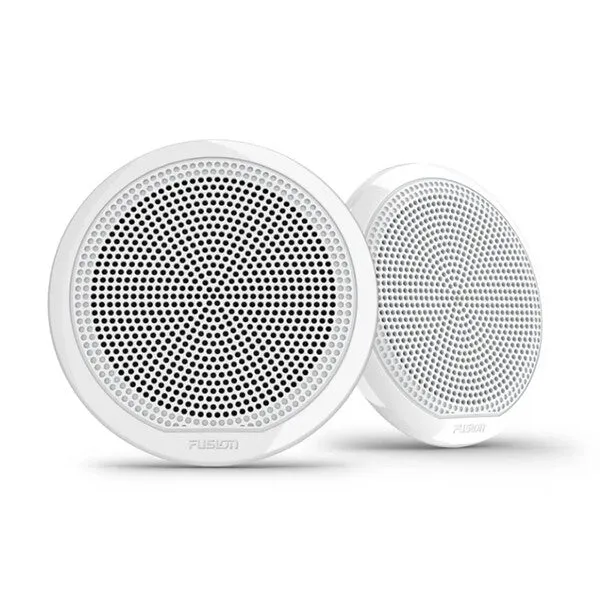

Fusion® EL Series Marine Speakers
6.5" 80-Watt Classic White Marine Speaker (Pair)
Part No. 010-02080-02

General

• Weight Classic: 1.21 lbs (0.55 kg)
• Sports: 1.26 lbs (0.57 kg)
• Physical dimensions (diameter x depth) Classic: 6.93" x 2.26" (176 x 57.5 mm)
• Sports: 6.93" x 2.32" (176 x 59 mm)
• Water and dust rating IP65
• Configuration Full range
• Speaker size 6.5"
• Peak power (Watts) 80 W
• RMS power (Watts) 20 W
• Sensitivity (1 W / 1 m) 91 dB
• Frequency response 45 Hz-16 kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 20-40 W/Ch
• LED lighting Yes, RGB (sports-style only)
• LED supply voltage 10.8-16 VDC (sports style only)
• LED load current @ 16 VDC 150 mA (sports style only)
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 0.79"
• Cone material Polypropylene cone with cloth surround
• Compass-safe distance 100" (254 cm)
• Warranty 1 year
• Mounting dimensions
• Mounting diameter clearance 5.12" (130 mm)
• Mounting depth clearance 1.69" (43 mm)
