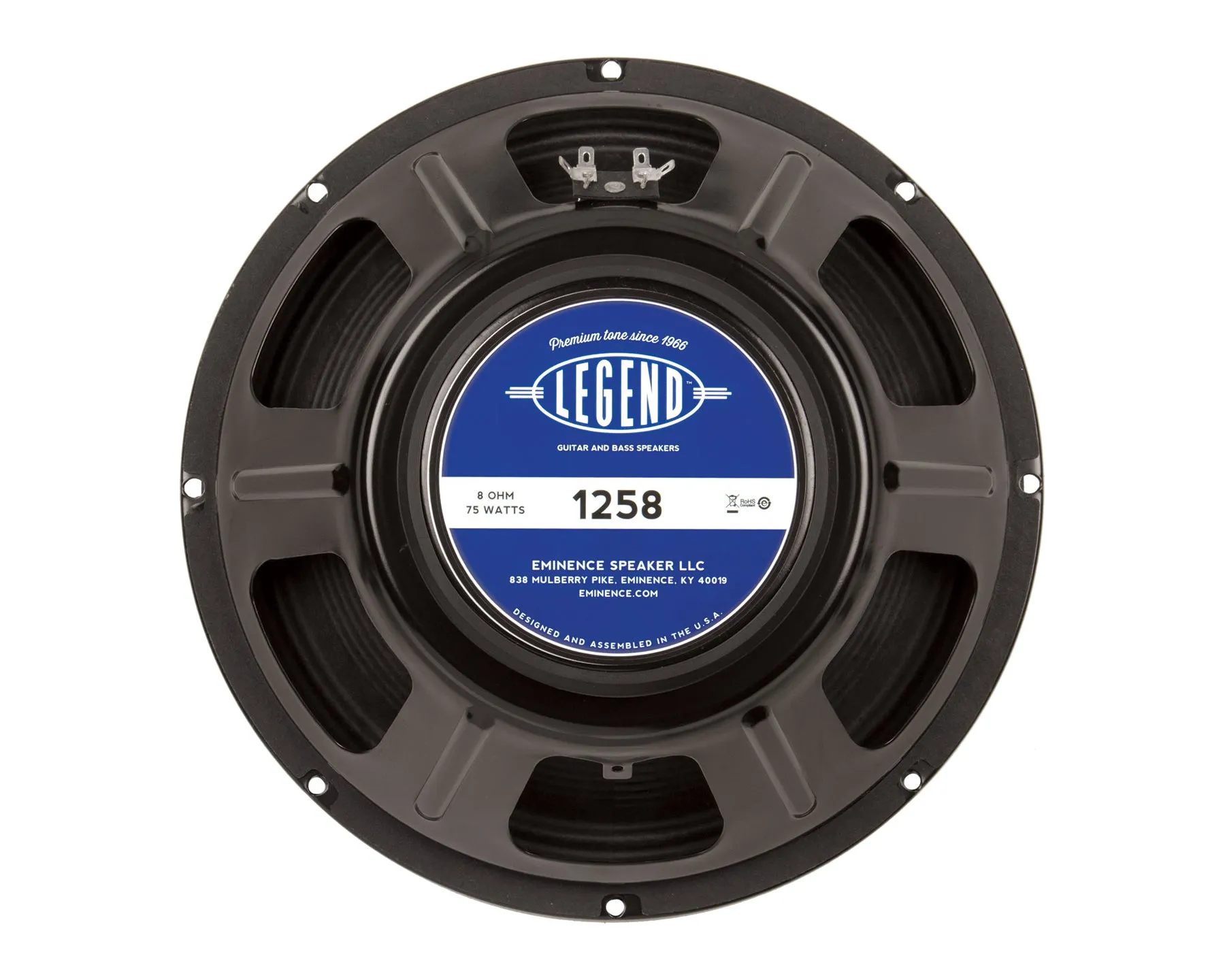

The Eminence Legend 1258 75 Watt, 8 Ohm guitar speaker is perfect for blues and rock. Pure vintage American tone with tight lows and warm, smooth mids and highs. Ideal as a replacement or upgrade for many of your favourite classic amps.

SPECIFICATIONS

• Nominal Basket Diameter: 12", 305 mm
• Nominal Impedance: 8 Ω
• Watts: 75 Watts
• Resonance: 94 Hz
• Usable Frequency Range: 80 Hz - 4 kHz
• Sensitivity: 100.1 dB
• Magnet Weight: 34 oz.
• Gap Height: 0.312", 7.9 mm

• Voice Coil Diameter: 1.5", 38 mm

• Recommended Enclosure Volume: Sealed: N/a, Vented: Acceptable

• Driver Volume Displaced 0.069 cu.ft. / 1.96 liters
• Overall Diameter 12.03", 305.6 mm
• Baffle Hole Diameter: 11.07", 281.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D: 11.59", 294.4mm
• Depth: 4.9", 124.5 mm
• Net Weight: 7.8 lbs, 3.54 kg
• Shipping Weight 9.9 lbs, 4.49 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition Paper cone edge
• Dust Cap Composition: Solid composition paper dust cap

Product Specs

• Item Number: 16205
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Made In: United States
• MPN: LEGEND1258
