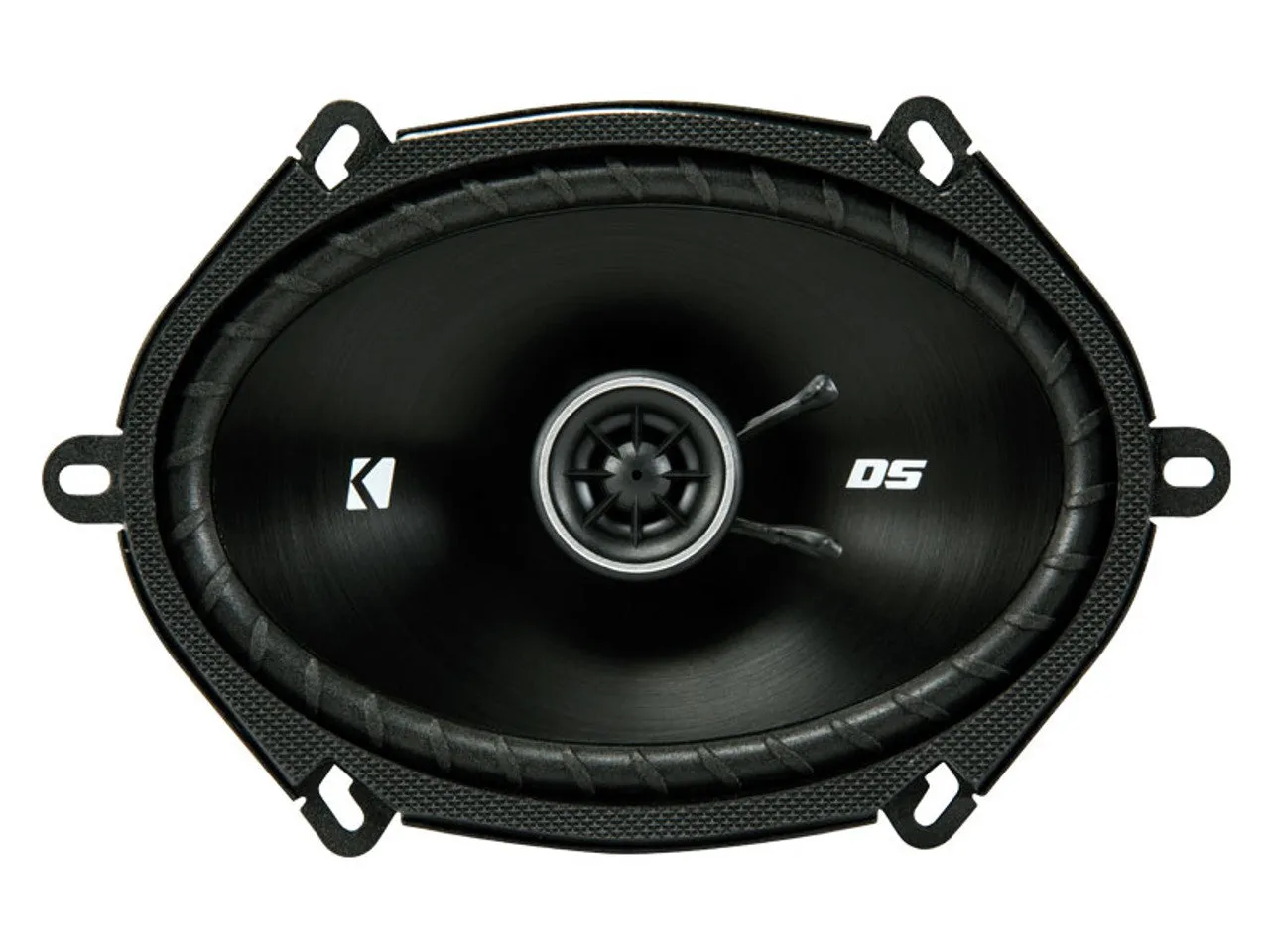

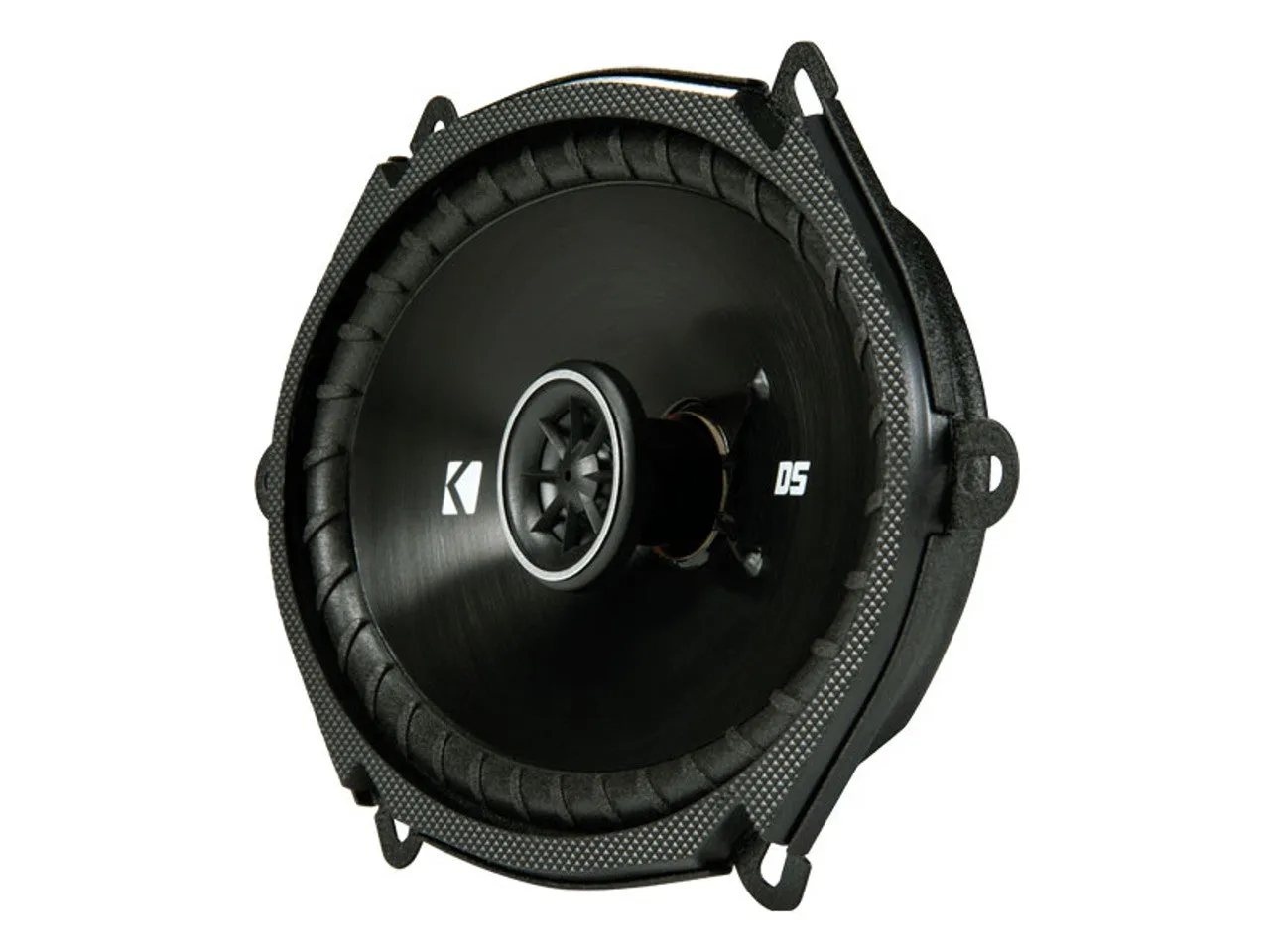

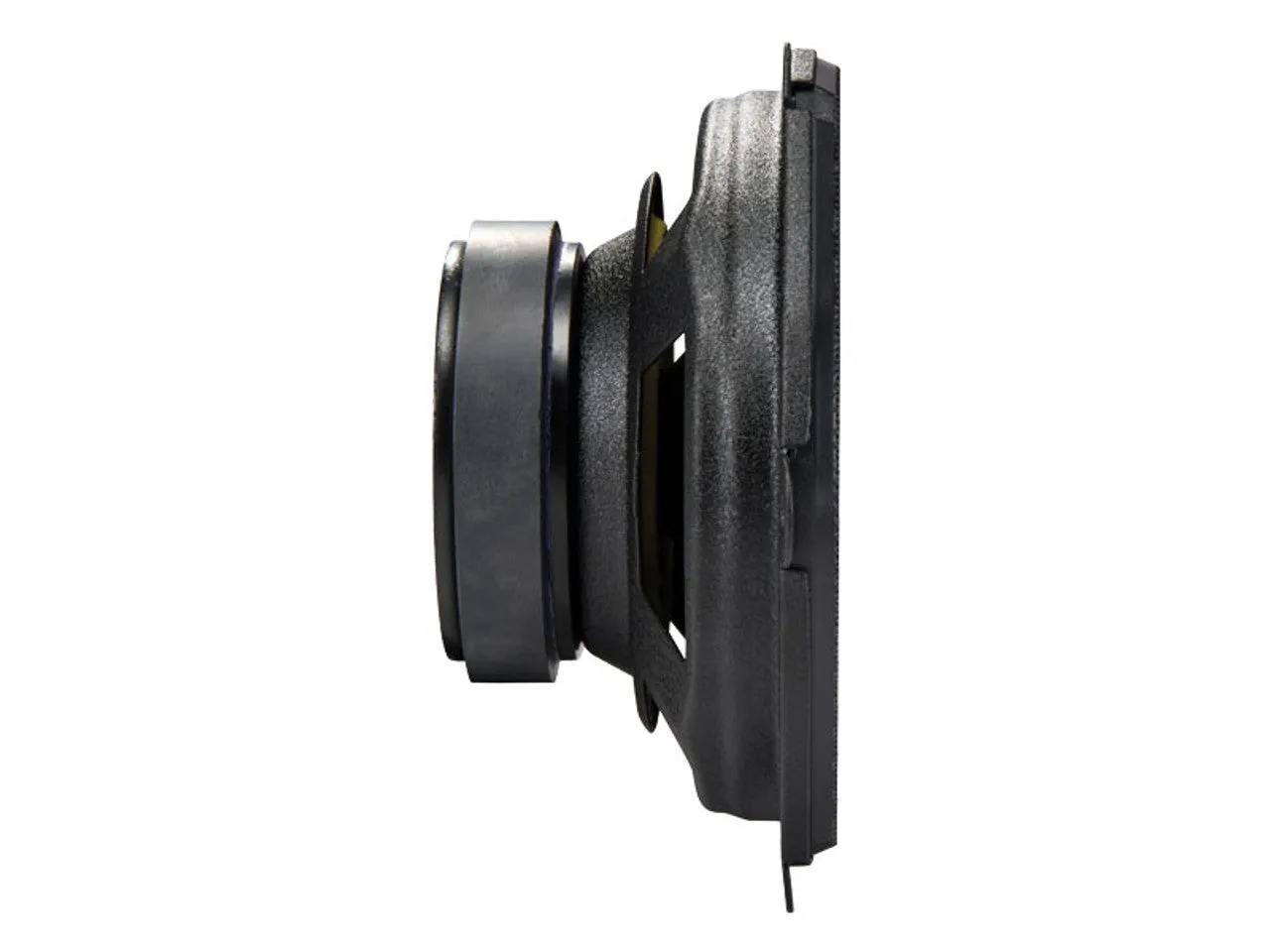

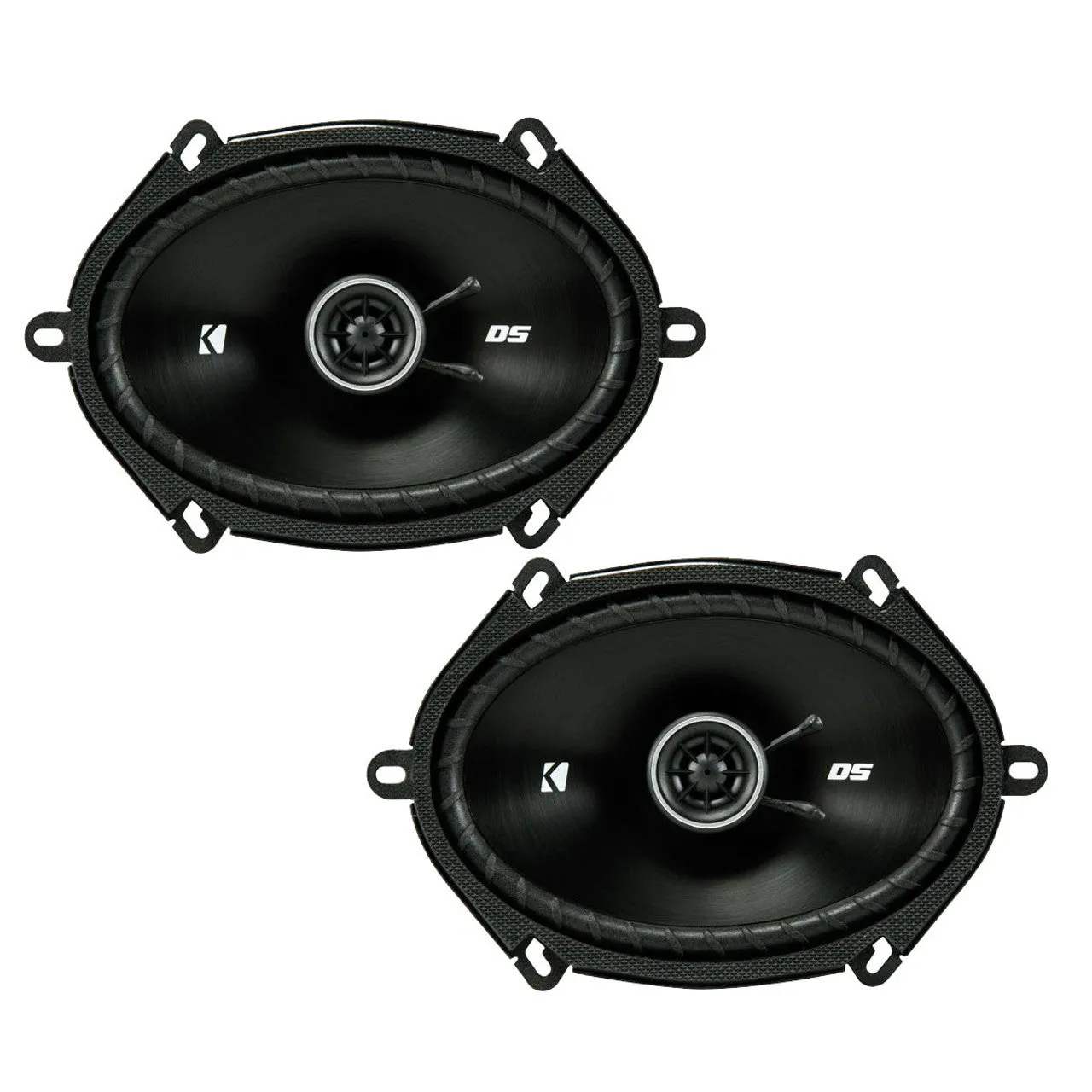

DS Series 6x8" Coax

The DS 6x8-Inch Coaxial Speakers are the upgrade you need for great sound in your doors.

A ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology give you the best sonic quality and the deepest bass in a full range speaker.

These DS speakers work best with 50 watts of recommended power. See below for more details.

Specifications

WOOFERS [in, mm]: 6x8, 160x200
MIDRANGES [in, mm]: N/A
TWEETERS [in, mm]: 1/2, 13
IMPEDANCE [Ohms]: 4
MAX REC. AMP POWER [watts peak]: 70
MAX REC. AMP POWER [watts RMS]: 6-35
SENSITIVITY [dB 1w/1m]: 90
FREQ. RESPONSE [Hz]: 45-20k
MOUNTING DEPTH [in,mm]: 2-3/8, 6
MOUNTING DIAMETER [in, mm]: 5x7-3/16, 127x183
GRILLES: no
