Black Diamond 6.5" Coaxial Speakers 4 Ohm DIA-65.2C

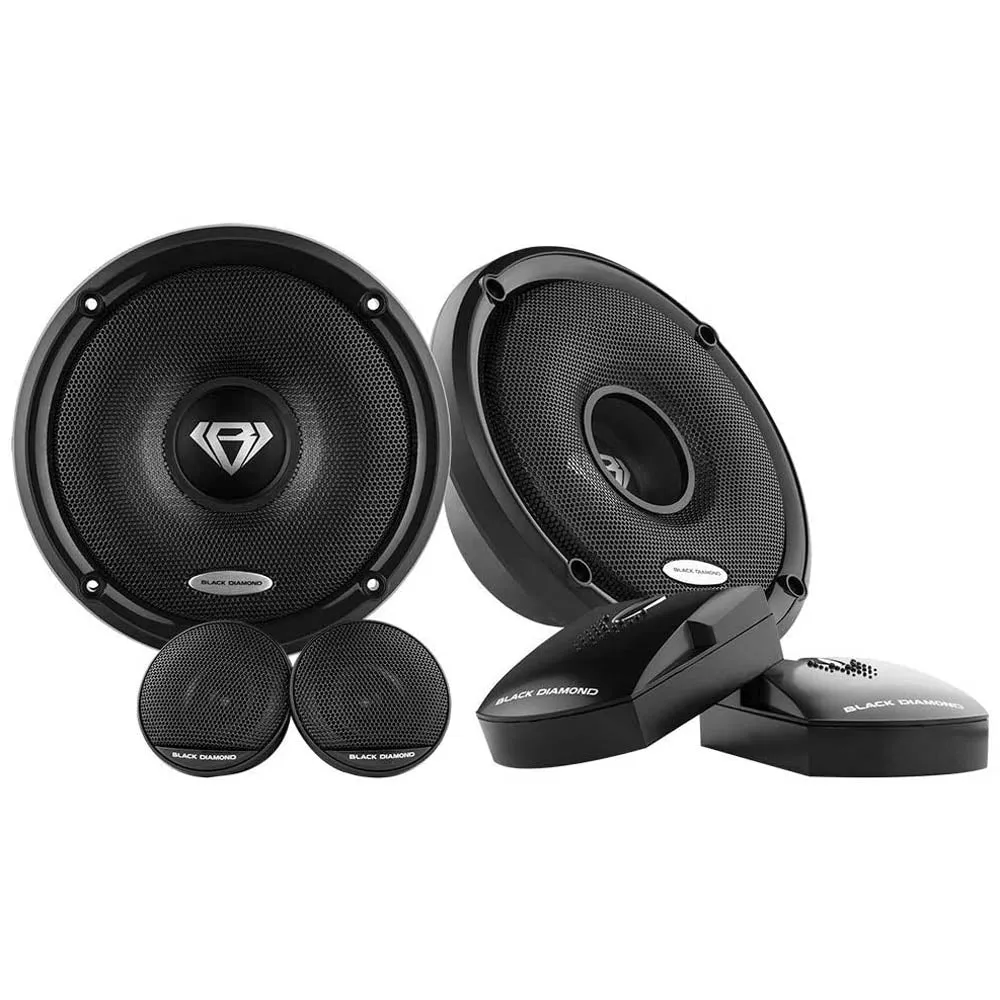

Very precise acoustical accuracy for amazing sound quality is what this component set brings to the table. The DIA-65.2C delivers an impressive 120W Max Power with 60W RMS enough to tackle a full range of audio. Black Diamond has designed the perfect speaker that combines a midrange and a tweeter giving you a great balance and value in one efficient package with removable protective cover included. Upgrade from the stock door speakers that came with your car with the DIA-65.2C line.
Features
• Nominal Diameter: 6.5"
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 60 Watts
• MAX Power Handling: 120 Watts
• Sensitivity (1w/1m): 85 dB
• Frequency Response: 40Hz - 20KHz
• Recommended HI Pass Crossover: 70Hz
• Voice Coil Diameter: 1"
• Voice Coil Former Material: KSV
• Winding Material: PE
• Cone Material: IMPP
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Ferrite
• Magnet Weight: 15 oz
• Equivalent Volume: Vas 8.85L
• Free Air Resonance: Fs 71Hz
• Mechanical Factor: Qms 5.34
• Electrical Factor: Qes 1.029
• Total Factor: Qts 0.862
• Overall Diameter: 6.5" (166mm)
• Overall Depth: 2.5" (64.5mm)
• Front Mount Baffle Cutout: 5.6" (142mm)
• Mounting Depth: 2.3" (58mm)
• Motor Diameter: 3.3" (85mm)

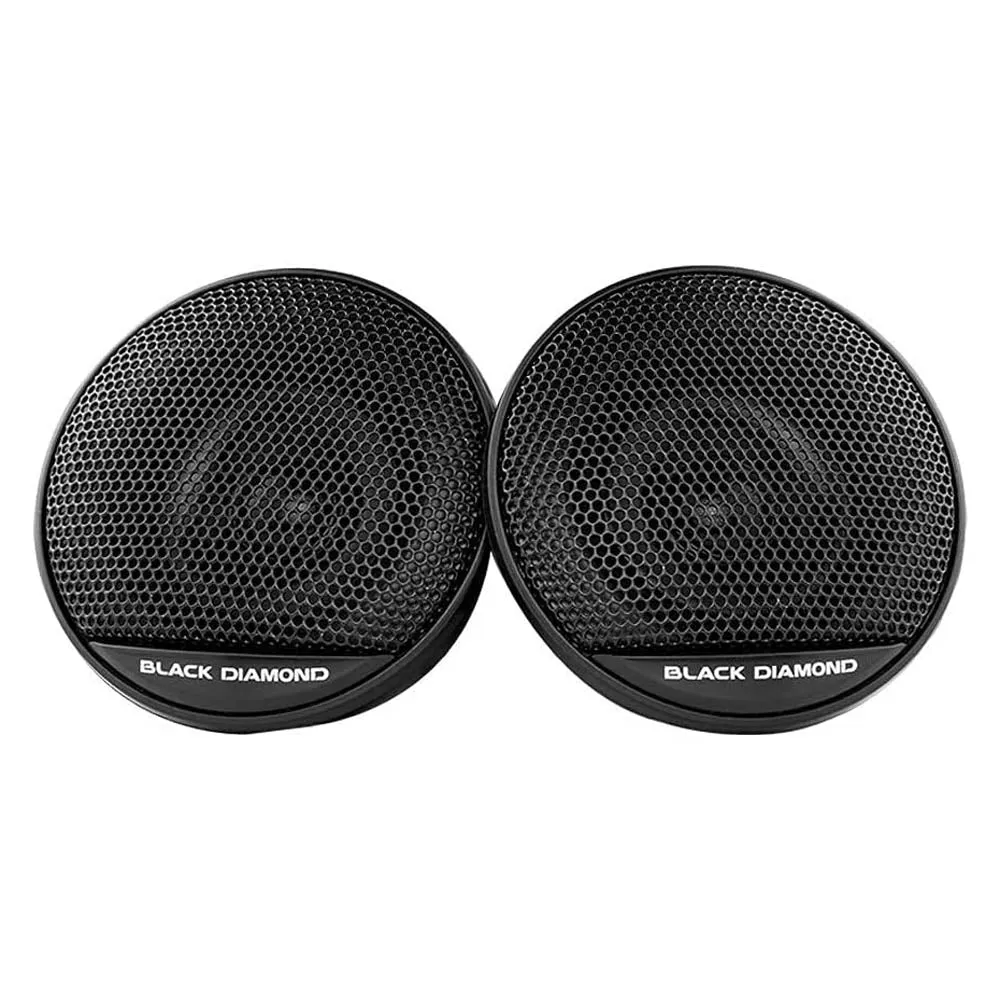

• Voice Coil Diameter: 0.5"
• Voice Coil Former Material: KSV
• Winding Material: PE
• Diaphragm Material: PEI
• Magnet Material: Ferrite
• Magnet Weight: 0.56 oz
• Overall Diameter: 2.3" (60mm)
• Overall Depth: 1.1" (28.5mm)
• Front Mount Baffle Cutout: 1.97" (50mm)
• Mounting Depth: 0.77" (19.6mm)
• Passive Crossover Ways: 2-Way
• Cut-Off Slope: LP:6 / HP:12 dB/oct
• Overall Length: 4.2" (109mm)
• Overall Depth: 1.35" (34.3mm)
• Overall Height: 3" (78mm)
