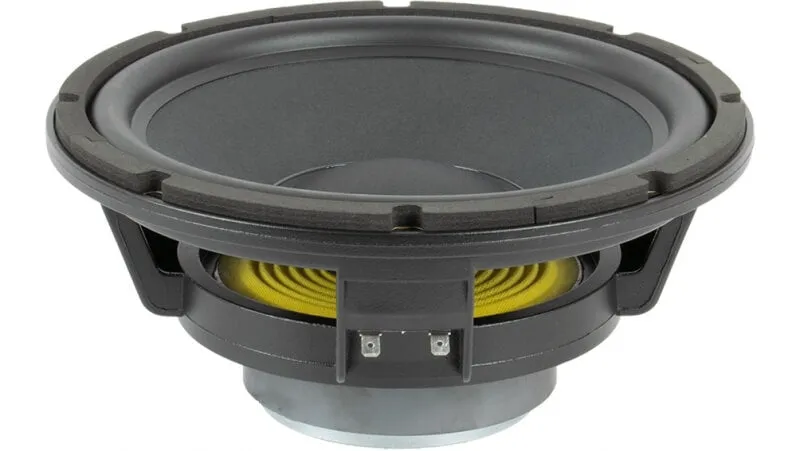

Product Details
＋
● 100 W RMS program handling
● Sensitivity: 90.6 dB @ 2,83 V @ 1 m
● 2” voice coil.
● Extended controlled displacement: X max ± 6,5 mm
● Low frequency driver
● Ferrite magnet
Specifications |
|
| Power capacity | 100 W RMS |
| Nominal diameter | 250 mm 10 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 8.3 ohm |
| Program power | 200 W |
| Sensitivity | 90.6 dB 1 W @ 1m @ 2Π |

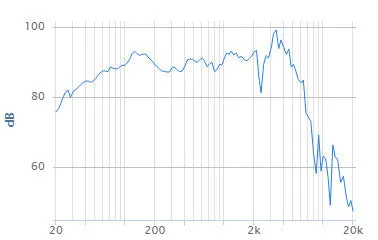

| Frequency range | 30-5000 Hz |
| Recommended enclosure volume | 30 / 100 l 1.06 / 3.53 ft.³ |
| Voice coil diameter | 50.8 mm 2 in |
| BL factor | 10.6 N /A |
| Moving mass | 0.048 kg |
| Winding length | 16 mm |
| Air gap height | 7 mm |
| Xdamage pp | 31 mm |
Thiele Small Parameters |
|
| Fs | 31 Hz |
| Re | 6.5 ohm |
| Qms | 3.3 |
| Qes | 0.55 |
| Qts | 0.47 |
| Vas | 108.2 l |
| Cms | 536 µm / N |
| Rms | 2.9 kg / s |
| Sd | 0.038 m² |
| Xmax | 6.5 mm |
| Vd | 240 cm³ |
| Le @1 kHz | 1.5 mH |
Construction |
|
| Net weight | 2.87 kg 6.33 lb |
| Total weight | 3.25 kg 7.15 lb |
| Magnet | Ferrite |
