Product Details
＋

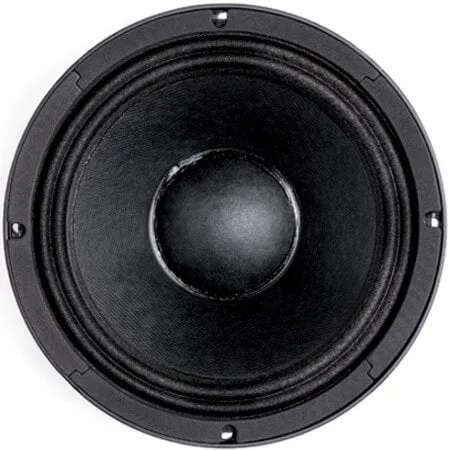

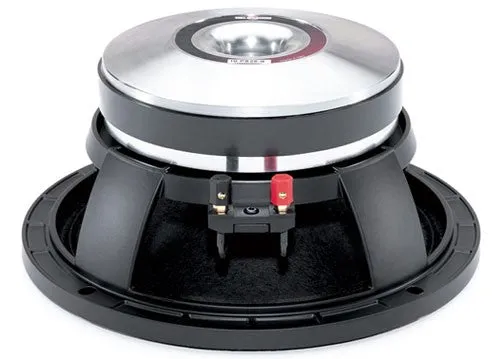

10" high efficiency woofer.
Alternative Part Code: ALT010PS268M
|
SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter: |
10", 254mm 8 ohms 350w rms, 700w program 55 Hz-4.0 kHz 96 db 1w/1m 3.0", 76mm |
|
MOUNTING INFORMATION Overall Diameter: Baffle Hole Diameter: Mounting Hole BCD: Depth: |
10.31", 262mm 8.8", 230mm 9.60", 245mm 4.8", 123mm |
|
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax: |
54.0 Hz 6.0 ohms 1.2mH 2.9 0.33 0.29 38 L, 1.3 cuft 5.5mm |
|
CONSTRUCTION -Cast basket -Ceramic magnet with aluminum voice coil Recone Kit: RCK010PS268 |
