Product Details
＋

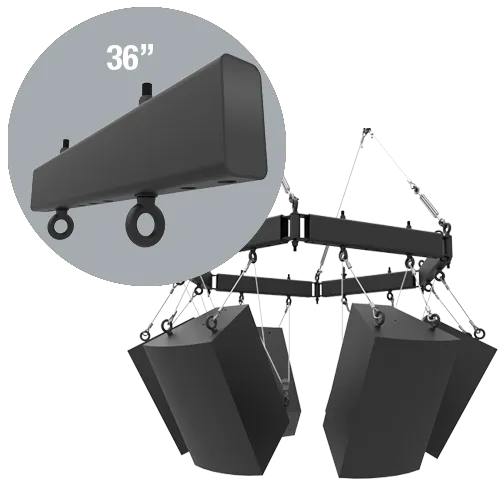

The GridLink™ Rigging Beam System provides the foundation for building quick and reliable loudspeaker suspension grids and speaker bars using predictable load-rated, modular and off-the shelf components.
GridLink™ Rigging Beams are comprised of standard length beams and beam connectors. The GridLink™ connectors act as a heavy-duty beam couplers and load-rated suspension point. In addition, they pivot horizontally to create a wide variety of angles, grid sizes and shapes including rectangles, squares, hexagons and triangles.
Features
- Modular approach to Rigging
- Quick set up and predictable Installs
- Off the shelf, ready-to-ship to the job site
- Multiple tier capable
- Comes with 1/2” Ø Eye Bolts & Eye Nuts
Specifications
| Specifications | Package Contents | |
|---|---|---|
| Material: Structural Steel Alloy | 1 pc 36” Rigging Beam | |
| Finish: Powder Coat | 2 pcs 1/2” Eye Bolt Kits | |
| Color:: Flat Black | 2 pcs 2 Eye Nut Kits | |
|
WLL: Single Point 562 lb. 255.5 kg. Double Point 638 lb. 290 kg. |
2 pcs 1/2” End Caps |
